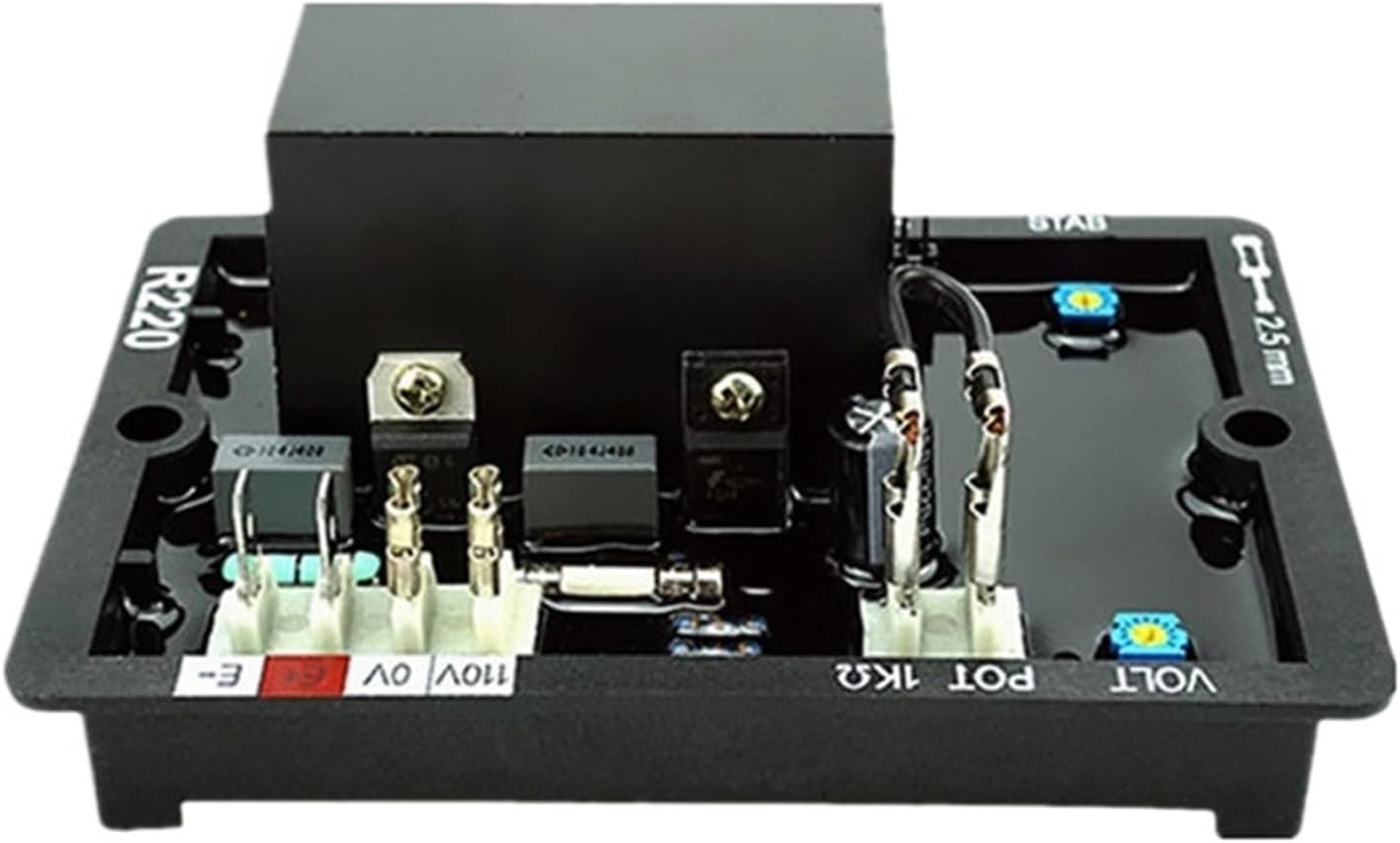

R220 Automatic Voltage Regulator Circuit Diagram Stabilizer Automatic Voltage Regulator for Diesel Brushless Generator

Automatic Voltage Regulator Circuit Diagram Automatic Voltage Regulator R220 for Generator Automatic Voltage Regulator BoardSpecification:Sensing/Power Input120(90-140)VAC, 1 phase 2 wireMagnetic Field OutputVoltage:Max 100VDC at 120VAC inputCurrent:Continuous 8A, intermittent 10APressure Regulating Accuracy<;+/-1%RMS with 4% engine governingFeatures:- Storage : -55°C ; +85°C- Operation : -40°C ; +65°C- Voltage regulation: ± 0.5%.- Voltage supply/sensing range 85 to 139 V (50/60 Hz)- Rapid response time (500 ms) for a transient voltage variation amplitude of ± 20%- Voltage setting P1 - Stability setting P2.- Frequency: 50 Hz with ST3 jumper- 60 Hz without ST3 jumper.- The size of the screwdriver tip used to adjust the potentiometer is 2.5 mm- Power supply protected by 8 A fuse, slowblow action (tolerates 10 A for 10 s) The fuse is impregnated in the resin, therefore it can not be replaced.FAQQ: Is our company a trade company or ?A: We are , we have own for Automatic Voltage Regulator, Rectifier diodes. And have for other parts like control moduel ,speed control and canopy parts etc. Which is certified by Alibaba and our showed photos can prove it.Q: Are the products ?A: Most the goods are replaced type made in , but can replaced the one with reliable performance. Also we supply the parts for the parts too.Welcome to inquiryQ: What' s the warranty?A: Standard warranty 12months for all the goods. Vip enjoy 24months warrantyQ: Whats the leading time for the goods?A: 80% of goods in stock supply will be sent out immediately against payment. Whole process time for your information1. 2-3days to express warehouse from our city;2. 6-12 days from to your addressQ: Can you provide the free sample?A: Usually we didnt provide the free sample.But can apply some free sample according to your company qualification.But freight cost should be paid by customer.==========Model Number : R220is_customized : YesOrigin : Mainland Cetification : ISO9001,Warranty : 1 yearFunction : Automatic voltage regulatorQuality Class : Class A Stock : R220 in stocksize : 16*9*6cmWeight : 0.4kg
