Electronics-Salon DIN Rail Mount 10 Position Power Distribution Fuse Module Board, for AC/DC 5~32V
4.1 (46 items)
Limited Time SaleUS$24.60 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 215636436 | Release Date | 2026/04/12 | List Price | US$16.40 | Model Number | 215636436 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

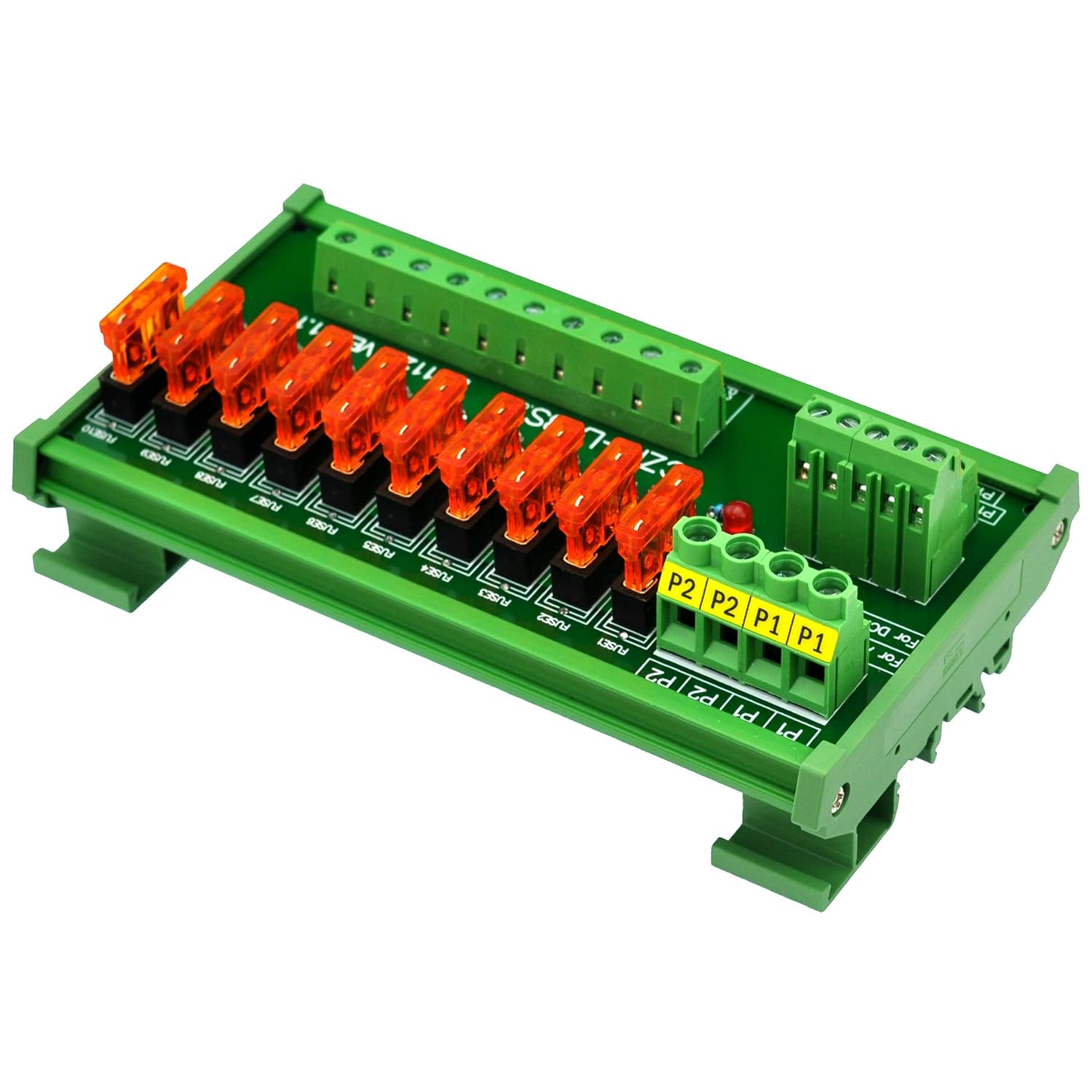

DIN Rail Mount Power Distribution Fuse Module Board. Specification: Work voltage: AC or DC 5~32V, total current rating 40Amp. PCB Dimensions: 150mm x 72.5mm x 29mm (W x L x H). Module Dimensions: 153mm x 87mm x 53mm (W x L x H). Input terminals: pitch - 7.62mm/0.3", current 30A for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. P1 output terminals: pitch - 5.08mm/0.2", maximum current 10A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw. P2-1 to P2-10 output terminals: pitch - 7.5mm/0.295", maximum current 10A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw. Fuse holders for Medium Blade ATO/ATC Fuse, factory-installed fuses 5Amp. with fuse fail indication function FR-4 fiber glass PCB, dual copper layers. fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.
- DIN Rail Mount Power Distribution Fuse Module Board.

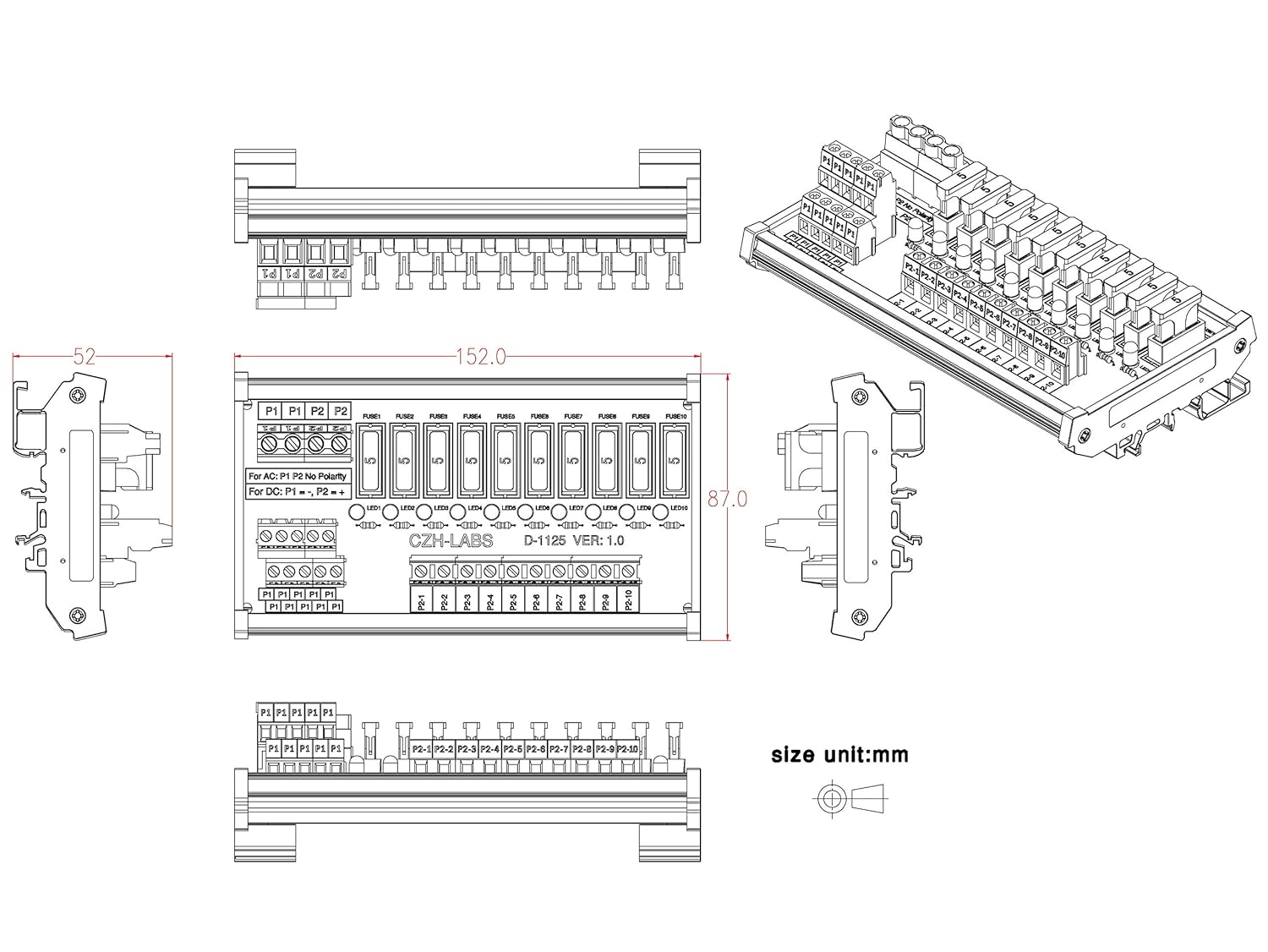

- Work voltage: AC or DC 5~32V, total current rating 40Amp. PCB Dimensions: 150mm x 72.5mm x 29mm (W x L x H). Module Dimensions: 153mm x 87mm x 53mm (W x L x H).
- Input terminals: pitch - 7.62mm/0.3", current 30A for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw.

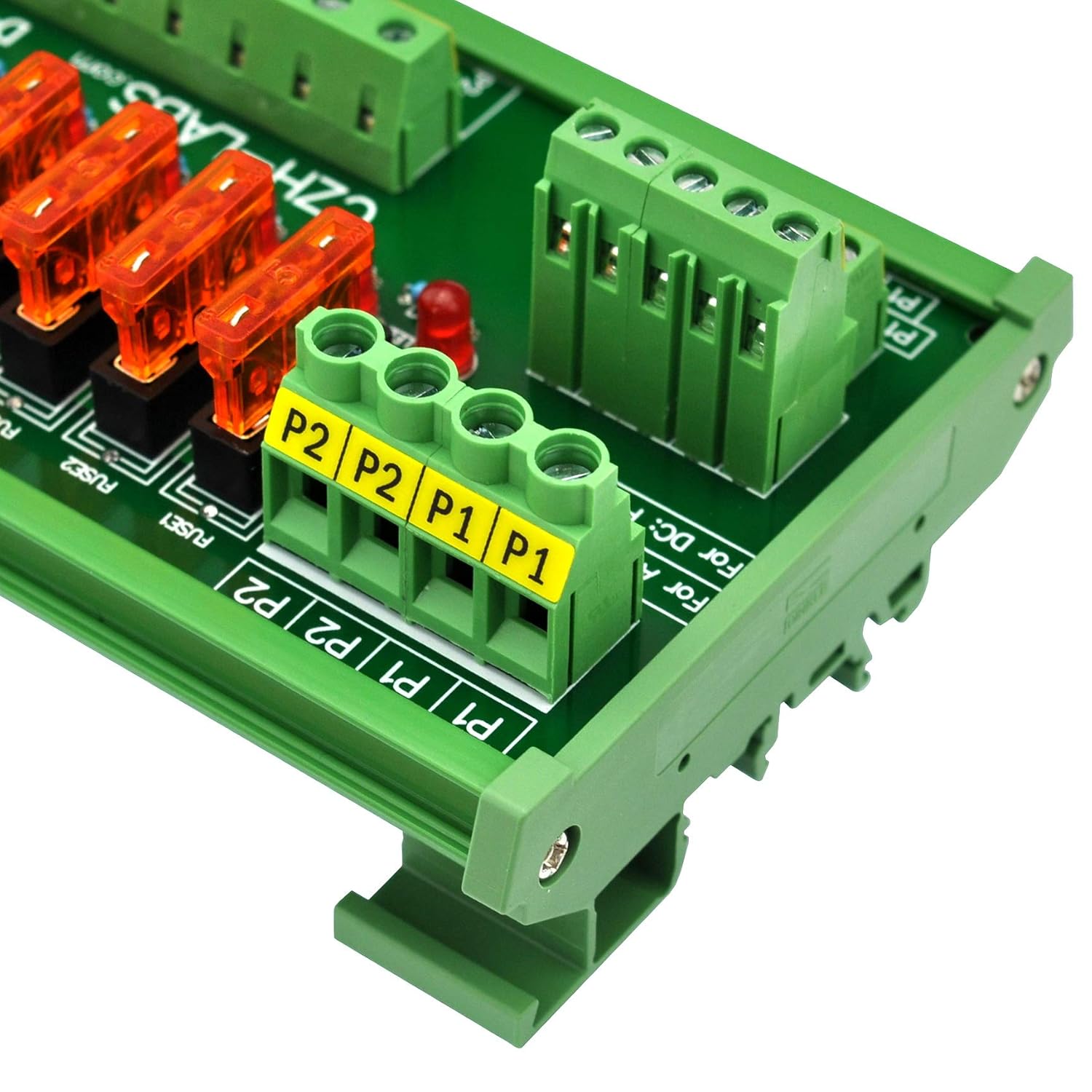

- P1 output terminals: pitch - 5.08mm/0.2", maximum current 10A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw.
- P2-1 to P2-10 output terminals: pitch - 7.5mm/0.295", maximum current 10A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw.
| Gauge | 10.0 |
|---|---|
| Model | 7034 |
| Pitch | 7.62 Millimeters |
| Voltage | 32 Volts |
| Brand Name | Electronics-Salon |
| Part Number | 43237-2 |
| Manufacturer | Electronics-Salon |
| Material Type | Copper, Nylon |
| Mounting Type | DIN Rail Mount |
| Connector Type | Screw |
| Current Rating | 40 Amps |
| Number Of Poles | 10 |
| Centerline Length | 87 Millimeters |
| Specification Met | Din |
| Number Of Contacts | 10 |
| Number of Positions | 10 |
| Item Dimensions W x H | 6.02"W x 2.09"H |
