Color Meter Portable Colorimeter Digital Color Analyzer Color Tester CIE-Lab ΔE*ab≤ 0.03 Two Apertures: Φ11mm Software APP

Specification Measurement structure* D/8，SCI Measurement repeatability** ΔE*ab≤ 0.03 Display accuracy 0.01 Measuring aperture There are two types of stable type and smart type：Φ11mm，▽11mm Measurement index CIE-Lab,Chromatic Aberration ΔE*ab Light source condition D65 Lighting source All-band equalizationLED light source Measurement and observation mode Visual Calibrate Manual calibration Software support Andriod,iOS,Windows, mini program Accuracy guarantee Assurance of metrology Field Angle 10° Integrating sphere diameter 40mm Meet the standard CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Spectroscopic method Nano integrated spectral device Inductor Silicon photodiode array double16 groups Wavelength interval 10nm Wavelength range 400-700nm Reflectance measurement range 0-200% Reflectance resolution 0.01% Measurement mode Single measurement, average measurement（2~99 Times) Measuring time About1s Port USB Screen IPS full color screen, 2.4 inches Battery capacity Continuous measurement on a single charge8000 times, 3.7V/3000mAh Light source lifetime 1 million times in 10 years Language Simplified Chinese, English Store Instrument: standard sample100 pieces, 10000 samples; APP mass storage

• Double optical path design improves repeatability accuracy dE*ab≤0.03;
• Innovative nanointegrated optics with a thickness of 5 microns;
• Includes SCI measurement mode. SCI refers to the mode of containing specular reflected light, which is generally used for studying the properties of the color itself without concern for the surface gloss of the sample to which the color is attached.

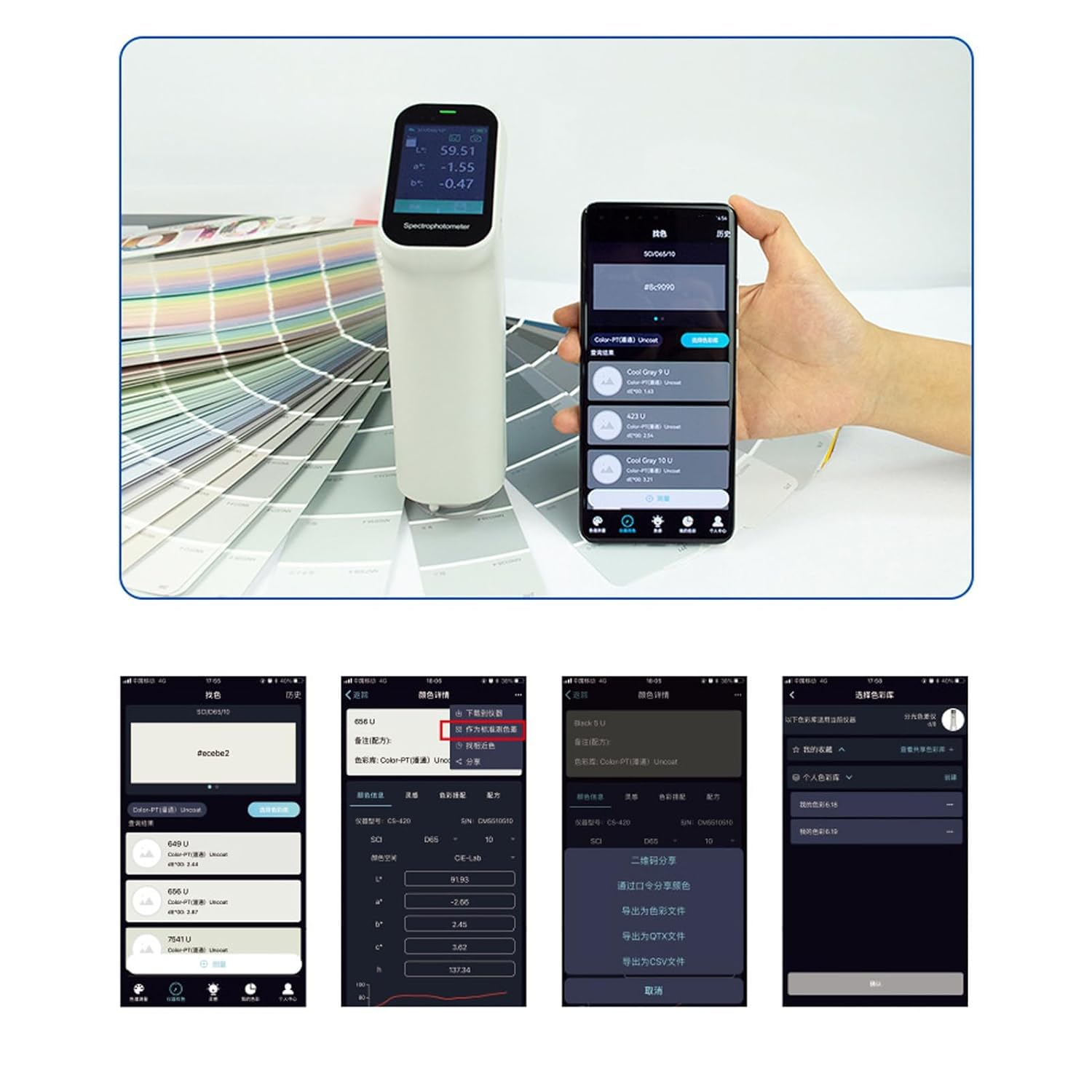

• Support mini program, Android, Apple, Hongmeng mobile APP; carry out color measurement work at any time.
• Use the powerful PC-side color management system ColorExpert.
