Adjustable Digital Display Film Applicator, Lab Doctor Blade Coater with Digital Micrometer, 0-6000μm Adjustable, Stainless Steel Wet Film Preparation Device, for Printing, Paint, and Coatings
4.4 (43 items)
Limited Time SaleUS$54.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 215214161 | Release Date | 2026/04/12 | List Price | US$36.00 | Model Number | 215214161 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The Adjustable Film Applicator is a wet film preparation device featuring a digital micrometer for precise coating applications in printing, paint, and coatings. It offers a measuring range of 1-6000μm with a graduation value of 1μm for accurate film thickness control. Key features include dual fine-tuning mechanisms that allow adjustment of the scraper gap to set coating thickness accurately, a spring-loaded scraper design for easy operation, cleaning, and high stability, and a high-precision fine-tuning mechanism enabling 1-micron incremental adjustments.Specification:Product name: Digital adjustable preparation deviceColor: SilverProduct material: Aluminum alloy frameScraper material: High-quality steelCoating Width: 100mm, 150mm, 200mm, 300mmMeasurement range: 1-6000μmGraduation value: 1μmPackage Size: 12x12x9cm/18x12x9cm/24x12x9cm/35x12x9cmWeight: 620g/760g/900g/1200gPackage Includes:1 x Adjustable Film ApplicatorNotes:1. Please allow the slight color difference caused by the light and 1 to 3cm error due to manual measurement.2. If you have any questions, please feel free to tell us directly and we will solve the problem for you with in 24 hours.

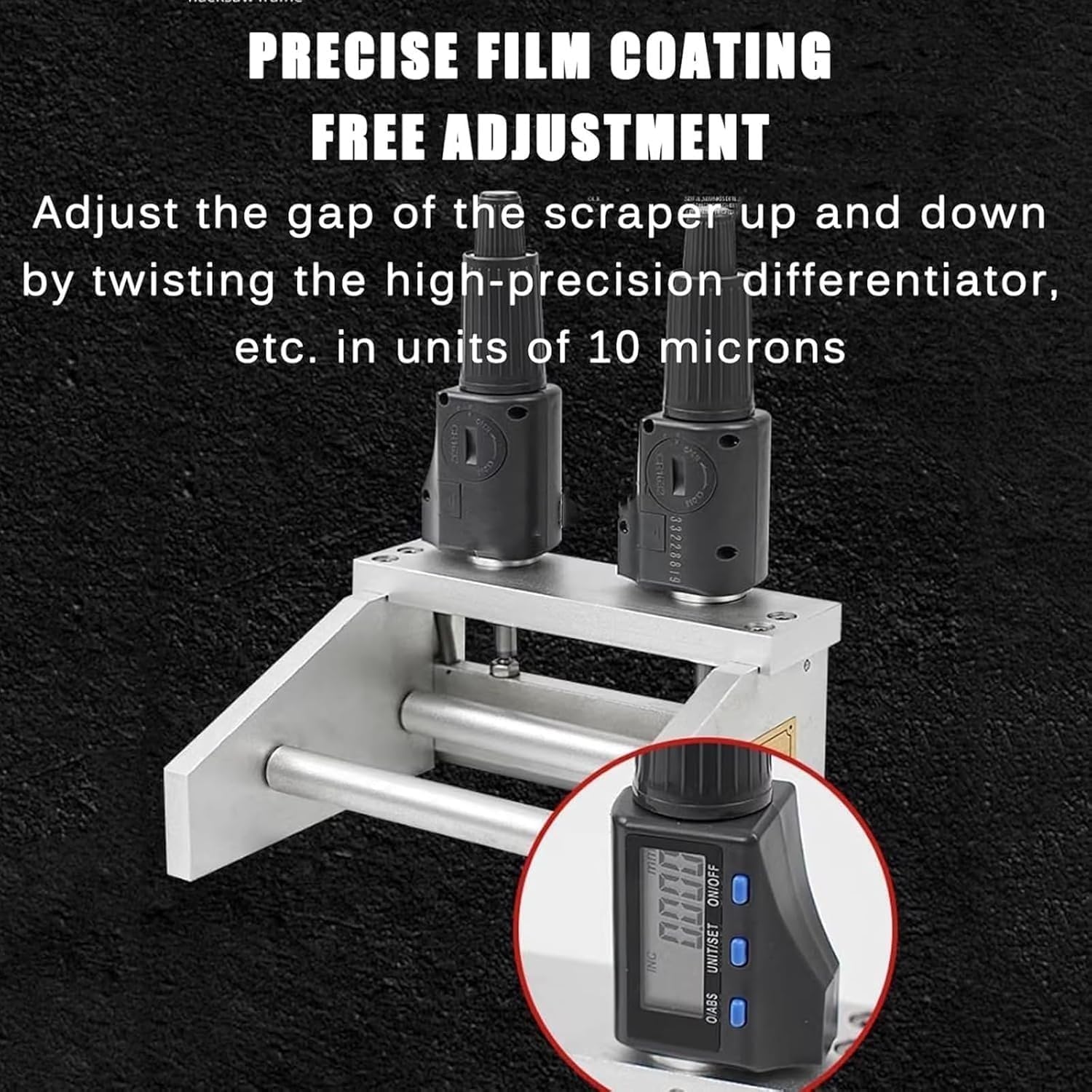

- 【Digital Adjustable Coater】: Suitable for research on accurate evaluation of film thickness. By adjusting the two differentiators above the coater, the scraper below can be adjusted to control the gap, that is, the final coating thickness
- 【Precise Control】: Coating gap adjustable from 1 to 6000 microns with 1-micron increments and accuracy within ±1 micron. Made of aluminum alloy for lightweight durability, available in 100mm, 150mm, and 200mm coating widths

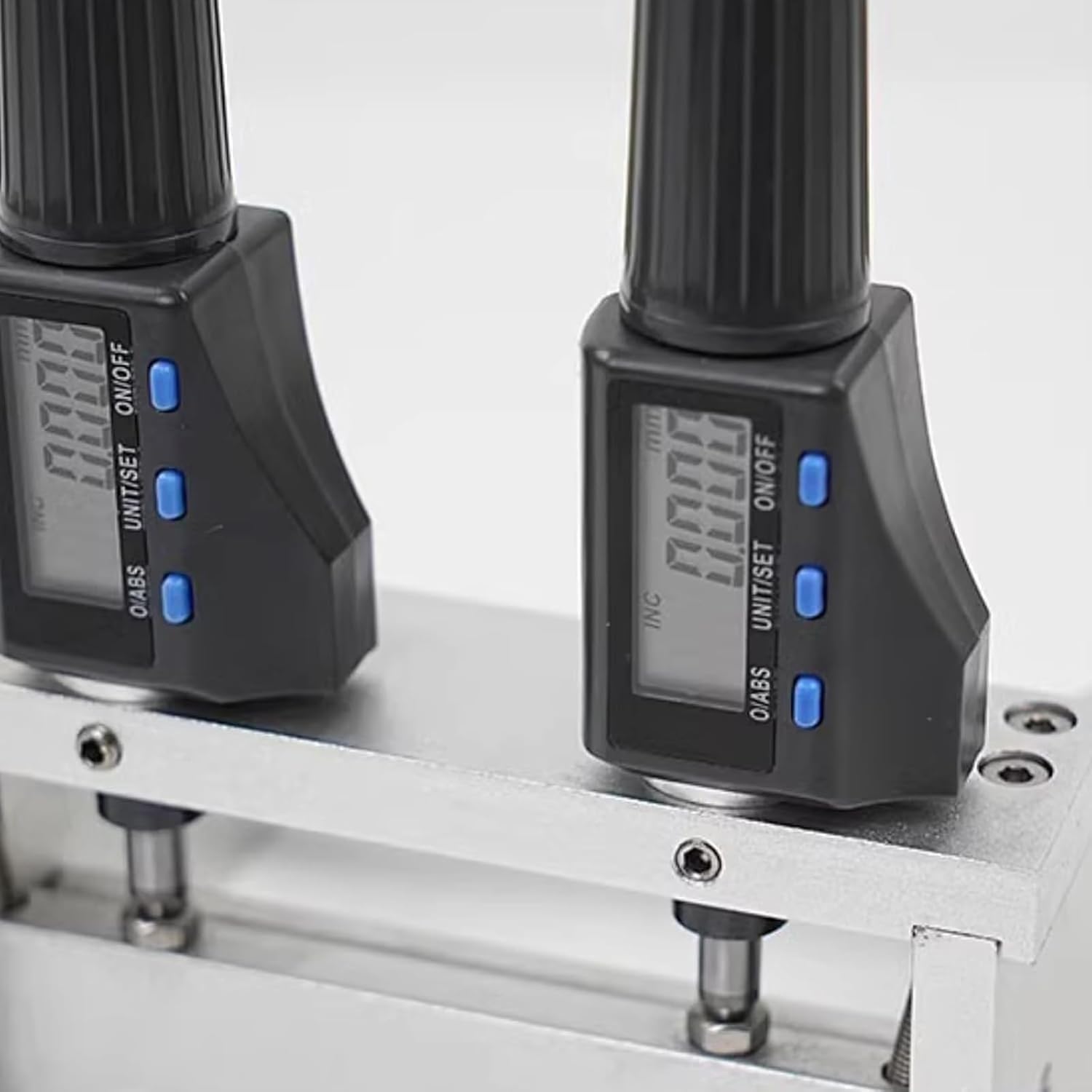

- 【User-Friendly Digital Display】: The Lab Doctor Blade Coating Machine features a spring-rebound scraper and digital micrometer for precise control. Easy to operate and clean, it streamlines film application in paint, ink, or coatings workflows
- 【Durability Construction】: Built with an aluminum alloy frame and stainless steel scraper, this Film Coating Applicator resists corrosion, deformation, and wear, ensuring longevity even under rigorous daily use
- 【Wide Range of Applications】: This coater is mainly used to apply a wet film of a specified thickness to determine the coverage, color or prepare sample plates of the sample. The coater is suitable for various coatings, printing, paint and other scientific research industries
| Size | 100mm |
|---|---|
| Color | One Color |
| Item Weight | 2.2 pounds |
| Part Number | OBZMBBERS-83DDA539 |
| Manufacturer | DOENUUB |
| Power Source | ac |
| Item model number | OBZMBBERS-83DDA539 |
| Batteries Required | No |
| Package Dimensions | 7.87 x 7.87 x 5.91 inches |
| Item Package Quantity | 1 |
